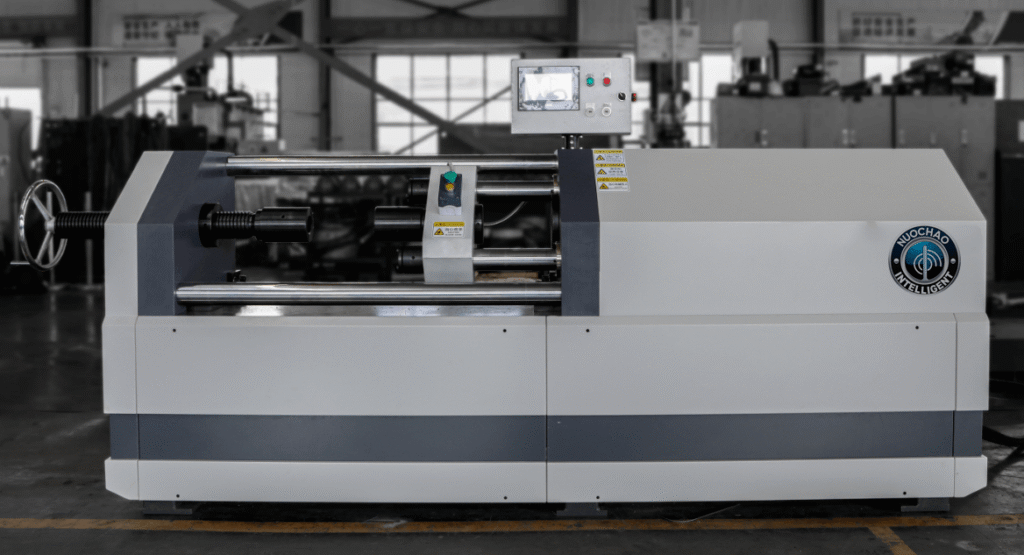

Nuochao Intelligent’s 600kn routine tensile testing machine is a special-purpose device used for routine tensile testing of disc-type porcelain insulators, glass insulators, or their steel pins and steel caps. It features high testing speed, high efficiency, and high accuracy.
I. Machine Structure
1. Main Frame Structure
The testing machine consists of a rigid welded frame, loading hydraulic cylinder, hydraulic system, lead screw and nut adjustment mechanism, load cell, displacement sensor (optional), and electrical control system.
The loading hydraulic cylinder provides a maximum tensile force of 600 kN with an effective stroke of 200 mm. During testing, the tensile force and displacement of the specimen are displayed on the LCD screen through the load sensor and displacement encoder (optional).
The lead screw and nut adjustment mechanism allows manual rotation of the handle on the nut to adjust the effective space for specimen installation. The effective testing space of this machine is not less than 340 mm.
2. Hydraulic System
2.1 Italian Marzocchi low-noise high-pressure gear pump – 1 set
2.2 Direct-coupled motor with built-in pump shaft – 1 set
2.3 Taiwan Jilida / Dongfeng proportional relief valve – 1 set
2.4 High-pressure oil filter (Wenzhou Kanghua) – 1 set
2.5 Air-cooled oil cooler – 1 set
2.6 Air filter and other hydraulic accessories – 1 set
3. Electrical System
3.1 Testing machine control system (in-house developed) – 1 set
3.2 Displacement (optional with deformation measurement) measuring device – 1 set
3.3 Load sensor 600 kN – 1 set
3.4 Programmable logic controller (PLC) – 1 set
3.5 Touch screen (Weinview) – 1 set
3.6 Dedicated testing machine control and data processing software – 1 set
3.7 High-integration and high-stability signal circuit boards made with imported electronic components. Higher integration means fewer intermediate links, simpler structure, better stability, and lower failure rate.
3.8 Virtual instrument technology is adopted, featuring a user-friendly and visually clear interface for easy operation and observation.
3.9 Sensor calibration combines reliable hardware support with software calibration.
3.10 Complete protection functions, including overpressure and overcurrent protection, to prevent equipment damage.
II. Technical Parameters
- Rated tensile force: 600 kN, accuracy ±1%
- Applicable specimen height range: 100–340 mm
- Holding time setting range: 0–60 s
- Cylinder stroke: 200 mm
- Transition sleeve connection thread specification: M75×3–6g (female thread)
III. Standard Configuration
Product Components
- Main machine – 1 set
(Load sensor, optional displacement encoder, adjustment lead screw, electrical control cabinet, and control box are installed on the main machine) - Hydraulic power unit – 1 set
(Motor, oil pump, centralized valve block, cooler, and hydraulic accessories)
Supplied Documents
- Operation manual – 1 copy
- Certificate of conformity – 1 copy
- Packing list – 1 copy
- Spare parts – 1 set (combined washers, O-rings, etc.)
